Kanyana’s Practical Guide to Laser Cutting Tolerances

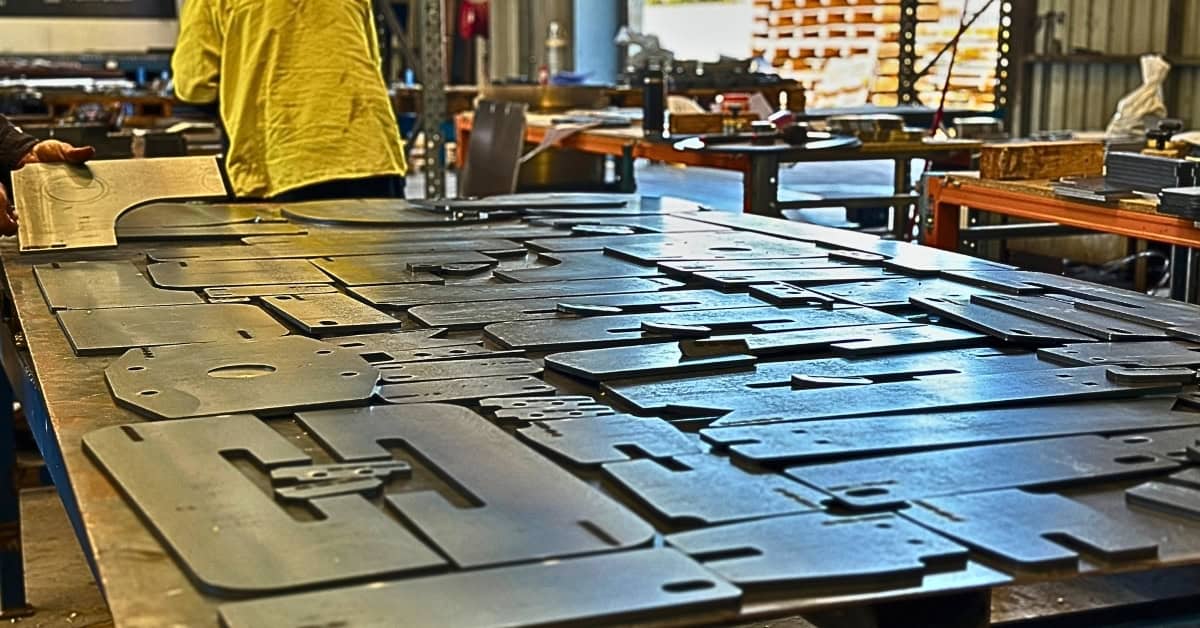

In precision manufacturing, there is often a gap between what a CAD program says is possible and what actually comes off the machine bed. When moving from prototype to production-ready product, understanding laser cutting tolerances is the difference between a part that fits perfectly and a pile of expensive scrap metal.

So what can you actually expect when you send a file to the laser? Here is the reality of precision.

As material gets thicker, tolerance widens. Here is how it breaks down in practice:

Thin Gauge (Under 3 mm) — Under optimal, well-calibrated conditions, tolerances as tight as ±0.05 mm are possible. However, this is the best-case ceiling, not the standard commercial expectation. For most production runs, plan for ±0.1 mm as your reliable working baseline.

Heavy Plate (16 mm – 40 mm) — The beam works harder and stays in contact with the metal longer, pushing tolerances to ±0.25 mm or more. For structural components in high-tech precision equipment and capability this must be designed for from the outset.

The 10% Rule for CNC Laser Cutting Tolerances — A widely used industry benchmark: achievable tolerance roughly equals 10% of material thickness. A 3 mm stainless component can expect approximately ±0.3 mm under standard commercial conditions. Tighter than this almost always means slower speeds and higher costs.

Stainless and Carbon Steel deliver the most predictable results due to consistent thermal properties and reliable energy absorption.

Aluminium and Copper are the most demanding on a fiber laser — but not primarily because of reflectivity. That is largely a CO2 laser-era concern. On a modern fiber laser, the real challenge is high thermal conductivity: these metals pull heat away from the cut zone rapidly, disrupting piercing, narrowing the usable parameter window, and increasing the risk of burrs and inconsistent kerf quality. Experienced setup and careful parameter control are essential.

The laser does not cut a line;  it melts away a narrow strip of material called the kerf. For fiber lasers cutting metal, kerf width typically ranges from 0.1 mm to 0.5 mm, scaling with thickness. On 1 mm stainless, kerf sits around 0.15 mm; on 10 mm+ plate, it can reach 0.40 mm or beyond. If your fabricator does not compensate for kerf in their CAM software, your part will consistently come out undersized — or holes oversized — relative to your drawing.

A ±0.2 mm variance on a single bracket seems negligible in isolation. But when designing a large-scale frame or custom agricultural machinery, stack-up becomes critical. Ten components each off by 0.15 mm in the same direction puts your final assembly 1.5 mm out of alignment — the difference between a pin sliding home and reaching for a sledgehammer.

To manage this, design slotted holes at critical connection points, account for thermal expansion in field conditions, and always prototype at or near production scale before committing to a full run.

Two physical realities make true zero tolerance impossible regardless of machine quality.

Laser cutting is a thermal process. Microscopic expansion and contraction as metal cools can cause slight warping, particularly on long, thin parts.

On thicker materials, the laser beam is slightly conical, meaning the top of the cut may be fractionally wider than the bottom. This becomes increasingly significant on plate over 10 mm where both faces are mating surfaces.

For most general, structural and agricultural applications, design to a ±0.15 mm to ±0.2 mm working baseline. Reserve tighter specifications only for features where function genuinely demands it — hole centres, mating faces, pin diameters — and always confirm critical dimensions with your fabricator before locking in your drawings.
